Walkie Talkie Dual Band VHF UHF Portable CB Radio Station

Walkie Talkie Dual Band VHF UHF Portable CB Radio Station

Portable VHF UHF CB Two Way Radio,GT-03 dual band radio has Multi-function operation mode, scrabmler, DTMF, CTCSS/DSC; provides  cost-effective using experience.

  • Product Origin:

    China
  • Item NO.:

    GT-03
  • Color:

    Red,Orange,Green,Yellow,
  • Payment:

    T/T,PayPal,Western Union
Product Detail

Walkie Talkie Dual Band VHF UHF Portable CB Radio Station

Portable VHF UHF CB Two Way Radio,GT-03 dual band radio has Multi-function operation mode, scrabmler, DTMF, CTCSS/DSC; provides  cost-effective using experience.

Quick Details

1.Output Power:4W/5W
2.Frequency Range:136-174MHz&400-480MHz
3.Dual Band, Dual Display, Dual Standby
4.2*128 Channels Storage
5.Emergency Alert
6.FM Radio and 25 Stations Storage
7.CTCSS/DCS Scanning
8.0-9 Grades VOX Selectable
9.Multi and Priority Channel Scan Function
10.Channel Name Display and Setting
11.Power-on Message Display
12.Frequency Difference Setting
13.PC Software Programmable, Wired Clone Function
14.Reverse Frequency
15.Wide/Narrow Band(25kHz/12.5kHz)
16.Busy Channel Lock-out(BCLO)
17.Transmitter Time-out Timer(TOT)
18.End-tone Elimination
19.LED Setting
20.Beep Setting
21.Transmit Over Beeper
22.Dual Monitor
23.Receive Power Saving
24.Battery Power Display
25.Repeater Shift Direction
26.Frequency Spacing Function
27.Shortcut Menu Operation Mode
28.High/Low TX Power Selectable
29.2200mAH Li-ion Battery

Specification

GENERAL

Frequency Range

136-174MHz/350-390MHz/400-480MHz

Operating Temperature

-20℃to +55℃

Frequency Combination

please lock frequency synthesize

Frequency Stability

±2.5ppm

Memmory Channel

2*128channel

Working Voltage

7.4v

Antenna Impedance

50Ω

Operating Mode

simplex of co-frequency or alien

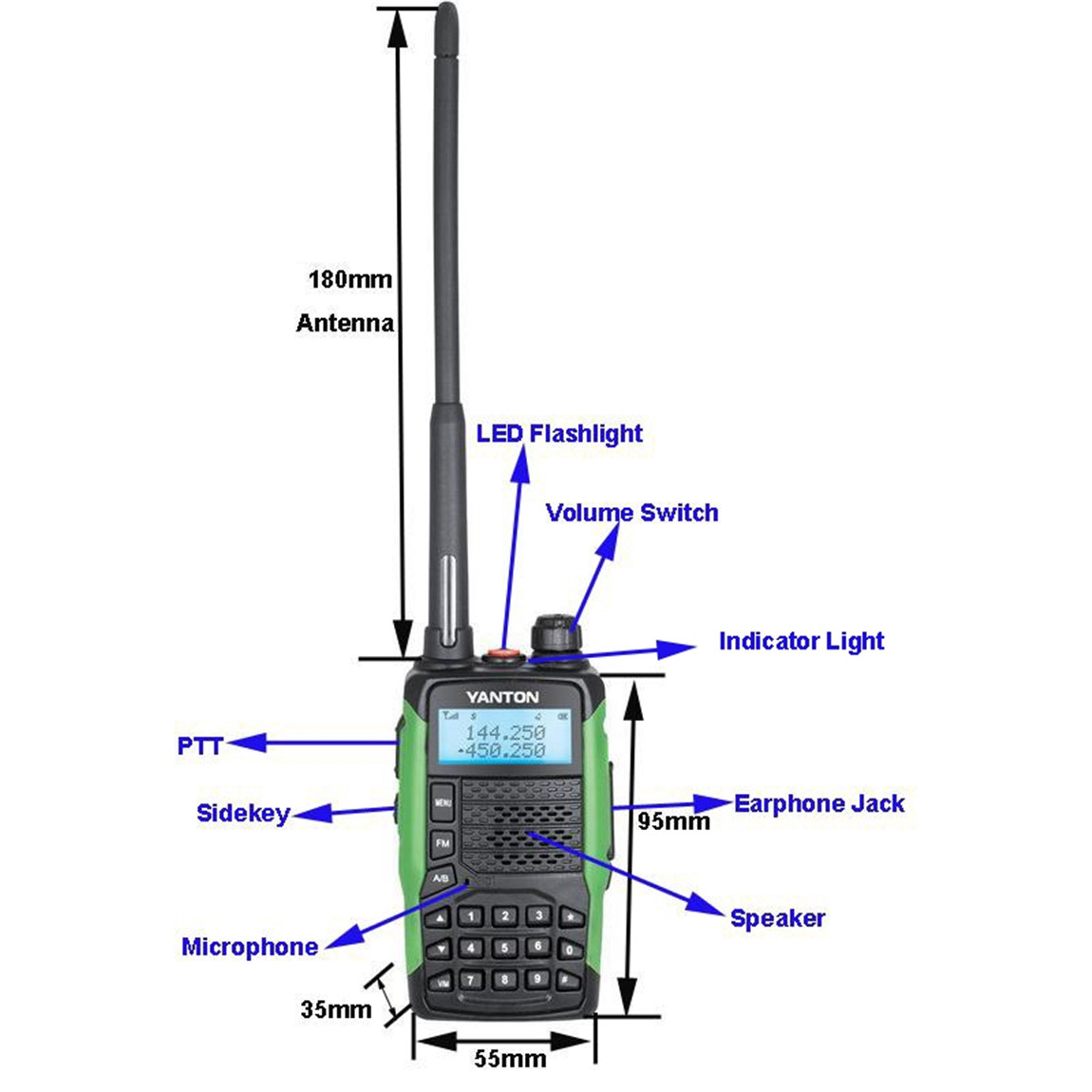

Dimensions

122*60*38mm

Weight

232g

TRANSMIT PART

RF power

5w

Modulate Mode

F3E

Max.Freq.Deviation

≤5KHz

Remain Wave Radiation

<-60dB

Transmitting Current

≤1000mA

RECEIVER PART

Sensitivity

<0.20uV (12dB SINAD)

Squeich Sensitivity

<0.20uV

Intermodulation Antijamming

50dB

Audio Power output

500mW

Receiving Current

≤100mA

Squelch Stangby

20mA


Portable VHF UHF CB Two Way Radio

Dual Band RadioCB UHF RadioVHF UHF Dual Band Radio


Service


Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping



Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
