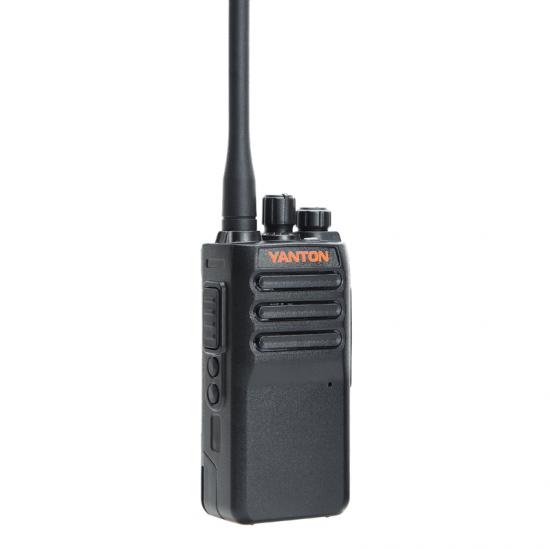

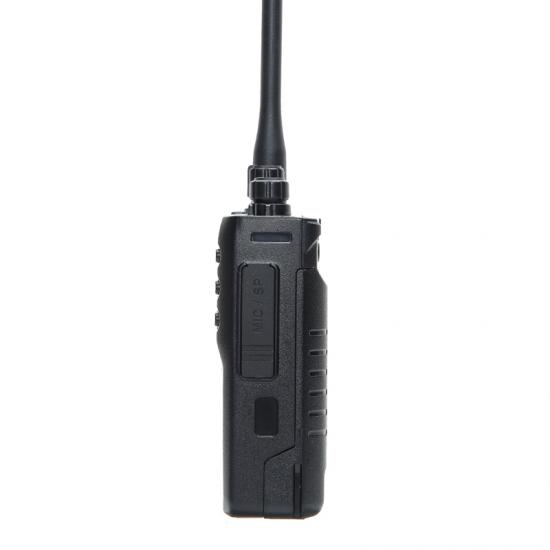

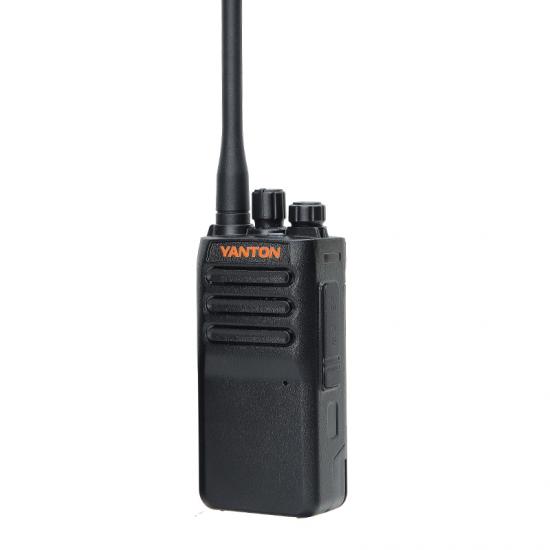

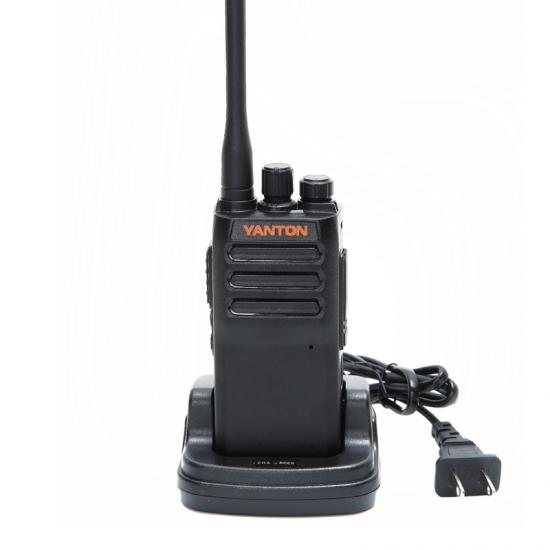

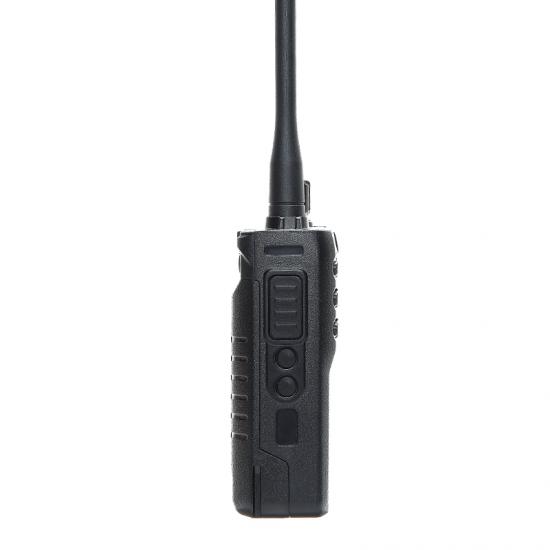

T-288,PTT Two Way Radio, is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers,construction sites and many more fields of work.
Product Origin:
ChinaItem NO.:
T-288Color:
BlackPayment:
T/T,PayPal,Western UnionLong Range 5W Powerful Walkie Talkie Portable VHF/UHF PTT Two Way Radio
T-288,PTT Two Way Radio, is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers,construction sites and many more fields of work.
Quick Details
1.Frequency Range: 136-174MHz/400-480MHz
2.16 Memory Channels
4.VOX Function
5.CTCSS/DCS
6.Chinese and English Voice Prompt
7.Power Saving Function, Low Power Warning
8.High/Low Power Selective 5W/1W
9.Wide/Narrow Bandwidth 12.5KHZ/25KHZ
10.Emergency Alarm
11.Busy Channel Lock
12.Transmitter Time-out Timer(TOT)
13.Side Key Assignment
14.0-9 Grades Squelch Level Setting
15.Scrambler
16. Compander
18.Wire Clone Function
Specification
GENERAL |
|
Frequency Range |
400-480MHz (RX/TX) |
Operating Temperature |
-20℃to +55℃ |
Frequency Combination |
please lock frequency synthesize |
Frequency Stability |
±2.5ppm |
Memory Channel |
16 |
Working voltage |
7.4v |
Antenna Impedance |
50Ω |
Operating Mode |
simplex of co-frequency or alien |
Dimensions |
123.51*57.89*36.84MM |
Battery Capacity |
2000MAH Li-ion Battery |
TRANSMIT PART |
|
output power |
5w |
Modulate Mode |
F3E |
Max.Freq.Deviation |
≤5KHz |
Remain Wave Radiation |
<-60dB |
Transmitting Current |
≤1000mA |
RECEIVER PART |
|
Sensitivity |
<0.20uV (12dB SINAD) |
Squelch Sensitivity |
<0.20uV |
Intermodulation Antijamming |
50dB |
Audio Power output |
500mW |
Receiving Current |
≤100mA |
Squelch Standby |
20mA |
Long Range 1W Handheld Two Way Radio
Service
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
