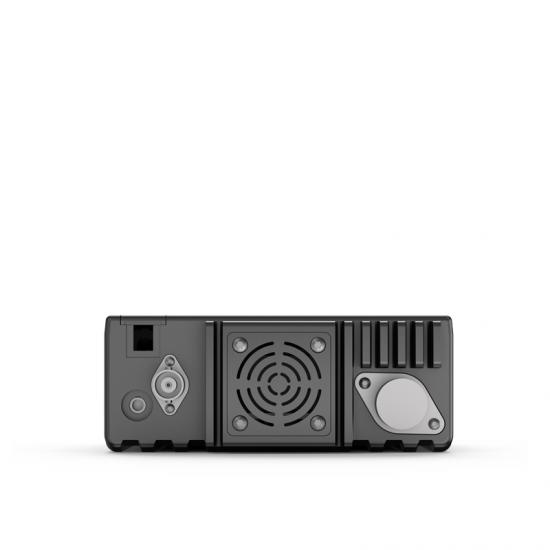

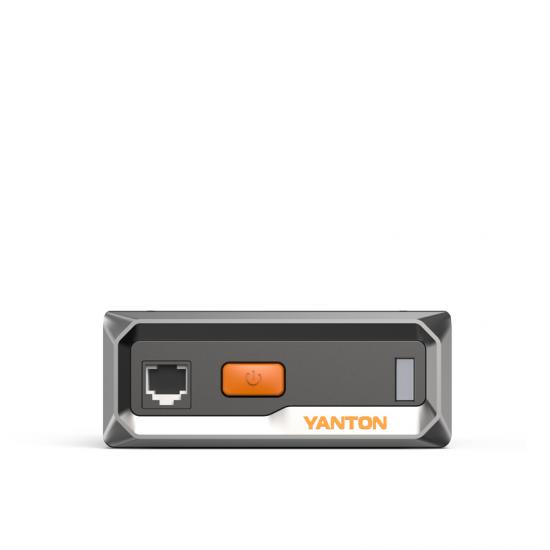

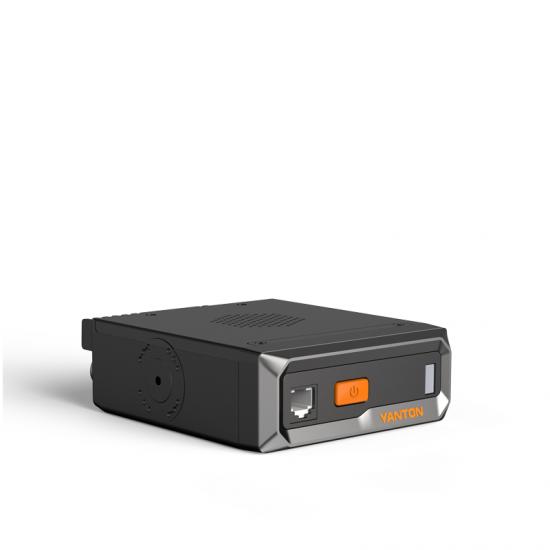

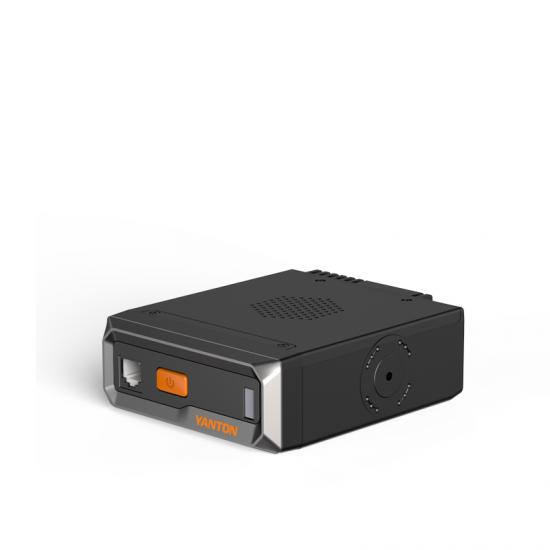

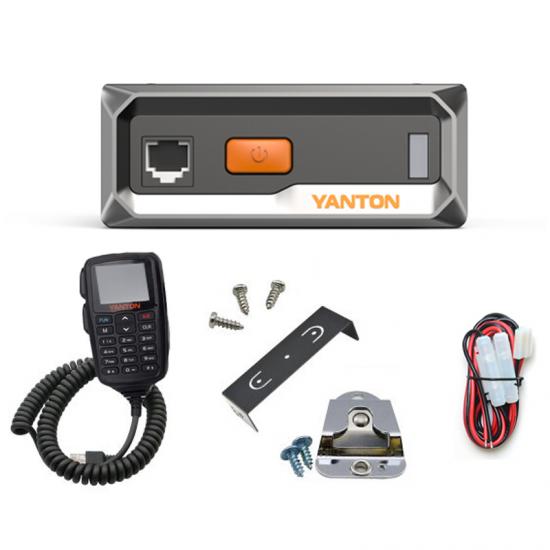

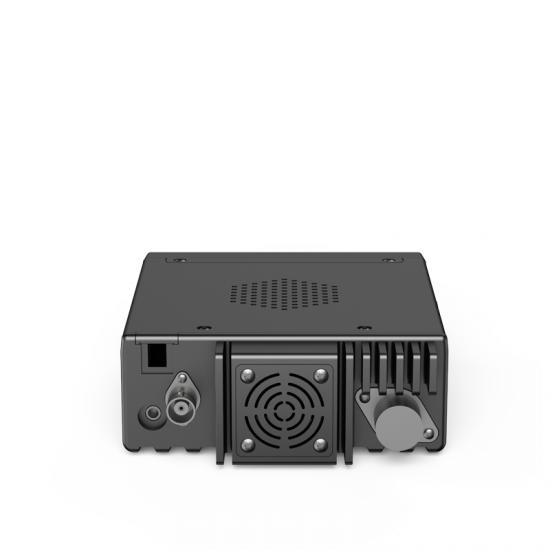

Dual Band Mobile Radio,The high-performance, simple-to-use TM-7600UV mobile radio are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.
Product Origin:
ChinaItem NO.:
TM-7600UVShipping Port:
QuanzhouColor:
BlackPayment:
T/T,PayPal,Western Union25Watt Dual Band VHF&UHF Walkie Talkies Vehicle Mobile Car Radio
Dual Band Mobile Radio,The high-performance, simple-to-use TM-7600UV mobile radio are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.
Quick Details
Frequency range:136-174MHZ& 400-480MHZ
Dual band, dual display, dual stand by
UHF VHF Cross Band Repeater Function
Output Power :25W
CTCSS/DCS setting & scanning
Voice compander
ANI ID
DTMF/2 tone/5 tone
Remote kill/ stun/ activate/ revive
Emergency alarm
Specification
GENERAL |
|
Frequency Range |
136-174MHz&400-490MHz |
Operating Temperature |
2.5ppm |
Operating Temperature |
-20℃~+60℃ |
Operating Voltage |
13.8VDC±15% |
Memory Channel |
2*250channels |
Dimension(HxWxD) |
145mmX190mmX47mm |
Weight(with bracket) |
1200g |
TRANSMIT PART |
|
RF power |
25W |
Frequency modulation |
11kΦF3E/16kΦ F3E |
Modulation distortion |
<5% |
FM noise |
≥36dB@KHz |
Adjacent
Channel Power |
≥60dB@12.5KHz |
RECEIVER PART |
|
Reference sensitivity |
0.25v/0.35v |
Adjacent channel selectivity |
60dB@12.5KHz |
Inter-modulation Rejection |
≥60dB/≥65dB |
Spurious Response Rejection |
≥70dB |
Rated
Audio Response |
+1-+3dB |
FM Hum &Noise |
≥40dB@25KHz |
