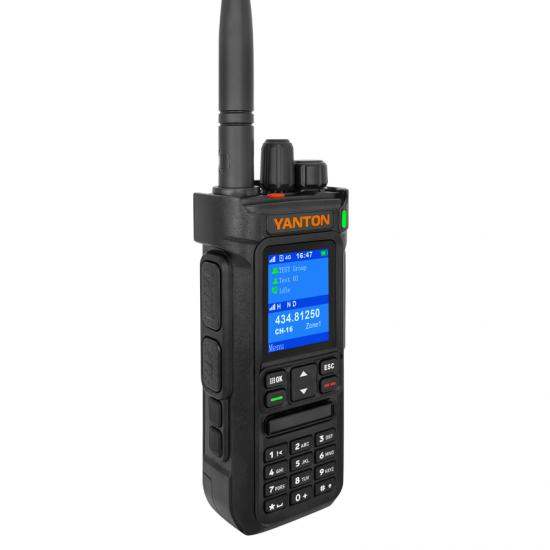

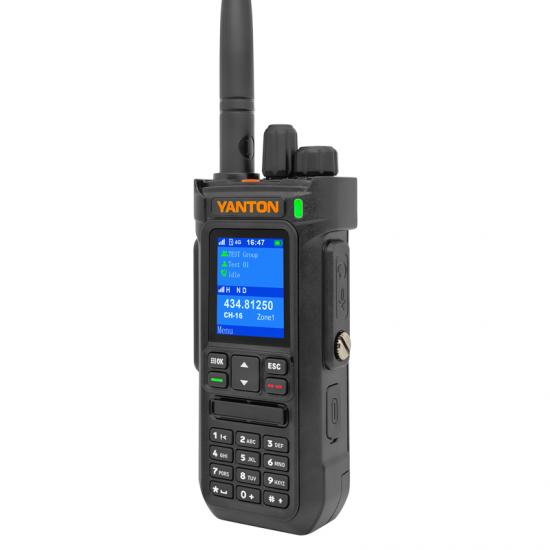

DM-868PLUS is a next-generation POC radio that seamlessly integrates POC with DMR and analog modes. It features a repeater function that bridges POC to DMR/analog networks, and intelligently conserves data traffic by automatically utilizing DMR/analog when communication distances allow. The dual-PTT design ensures quick, convenient mode switching for effortless operation.
Product Origin:
ChinaItem NO.:
DM-868PLUSShipping Port:
QuanzhouColor:
BlackPayment:
T/T,PayPal,Western UnionMOQ:
24G LTE DMR Two Way Radio UHF VHF GPS PoC IP67 Waterproof Walkie Talkie
DM-868PLUS is a next-generation POC radio that seamlessly integrates POC with DMR and analog modes. It features a repeater function that bridges POC to DMR/analog networks, and intelligently conserves data traffic by automatically utilizing DMR/analog when communication distances allow. The dual-PTT design ensures quick, convenient mode switching for effortless operation.
Quick Details
POC+DMR/Analog Mode Function
Individual Call/Group Call/All Call
Double PTT
Friendly Interface Displays The Calling Information
Repeater Function
GPS Function
SOS Function
Digital Encryption
Output Power:10W
1024 Channel,64Zone;
Man Down Function
Encryption:ARC4/AES128/AES256
GPS function (Optional)
IP67 waterproof (Optional)
Specification
|
General |
|
|
Public Network Mode |
FDD:B1 B3 B5 B8 |
|
Digital Mode |
400.000-480.000MHz |
|
Channel Capacity |
1024 |
|
Channel Spacing |
Analog: 25/12.5kHz; |
|
Operating Voltage |
7.4V |
|
Frequency Stability |
±1.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimensions (H×W×D) |
130×62×34mm |
|
Weight |
Approx. 315g (including battery, antenna, belt clip) |
|
Transmitter |
|
|
Power Output |
10W/1W |
|
FM Modulation |
11KΦF3E @ 12.5 kHz |
|
4FSK Digital Modulation |
12.5kHz Data only: 7K6ΦFXD |
|
Spurious Emissions |
-36dBm <1GHz |
|
Modulation Limiting |
±2.5kHz @ 12.5 kHz |
|
FM Noise |
40dB @ 12.5 kHz |
|
Adjacent Channel Power |
60dB @ 12.5 kHz |
|
Audio Response |
+1~-3dB |
|
Audio Distortion |
≤ 5% |
|
Receiver |
|
|
Sensitivity (Analog) |
0.2μV (12dB SINAD) |
|
Sensitivity (Digital) |
0.3μV / BER5% |
|
Selectivity TIA603 ETSI |
60dB @ 12.5kHz / 70dB @ 25kHz |
|
Intermodulation TIA603 ETSI |
65dB @ 12.5/20/25 kHz |
|
Spurious Response Rejection TIA603 ETSI |
70dB @ 12.5/20/25 kHz |
|
Signal-to-Noise Ratio |
40dB @ 12.5 kHz |
|
Conducted Spurious Emission |
-57 dBm |
|
Audio Power Output |
1W |
|
Audio Distortion |
≤ 5% |
|
Audio Response |
+1~-3dB |
|
Environmental Characteristics |
|
|
Operating Temperature Range |
-30℃ ~ +60℃ |
|
Storage Temperature Range |
-40℃ ~ +85℃ |
4G LTE DMR Radio
Service

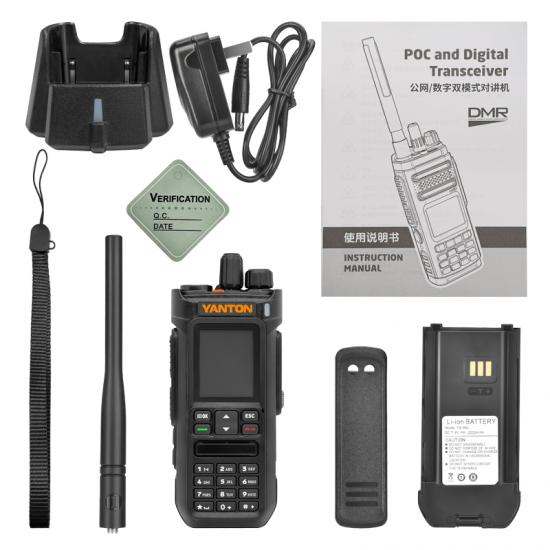

Package:Each package in gift box; 20PCS in strong carton
Payment:Paypal, Western Union, T/T, LC
Lead time:Sample: 1-3 working days
Wholesales order:500PCS within in 5-7 days
OEM order:7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express:door to door service DHL,UPS, FEDEX, TNT and so on.
By air:To destination airport, need to assist clear customs, without door to door service.
By sea:To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
