Product Origin:
ChinaItem NO.:
T-X9Shipping Port:
QuanzhouColor:
BlackPayment:
T/T,PayPal,Western UnionMOQ:

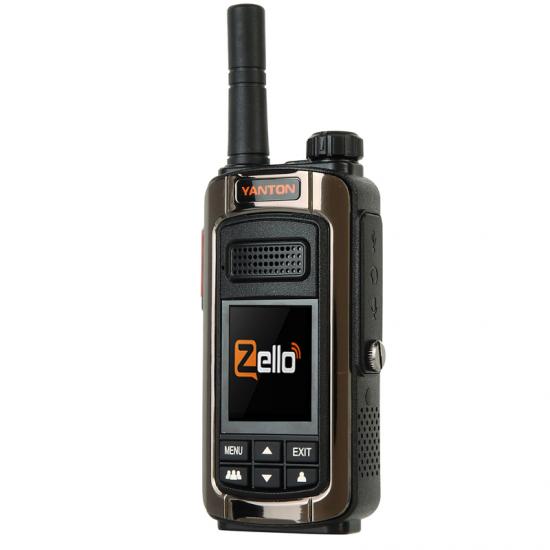

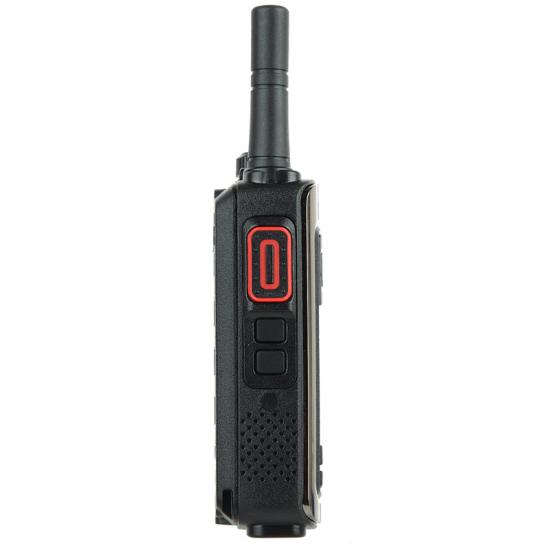

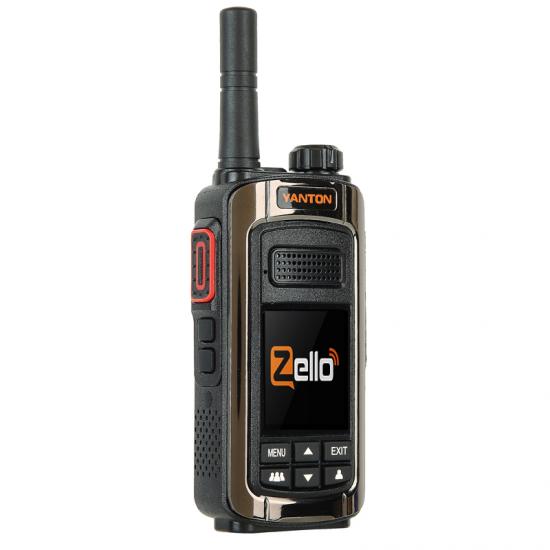

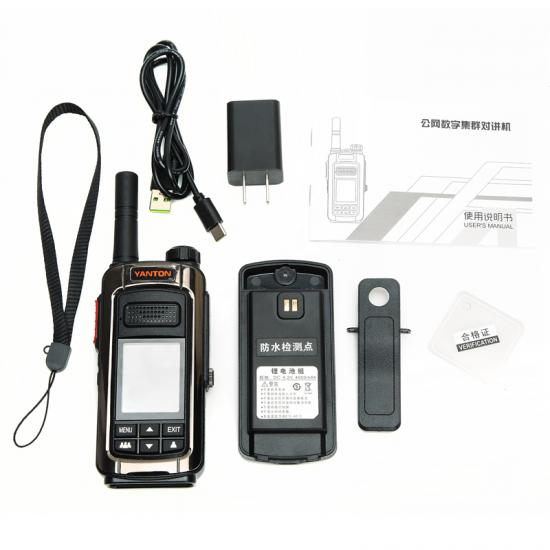

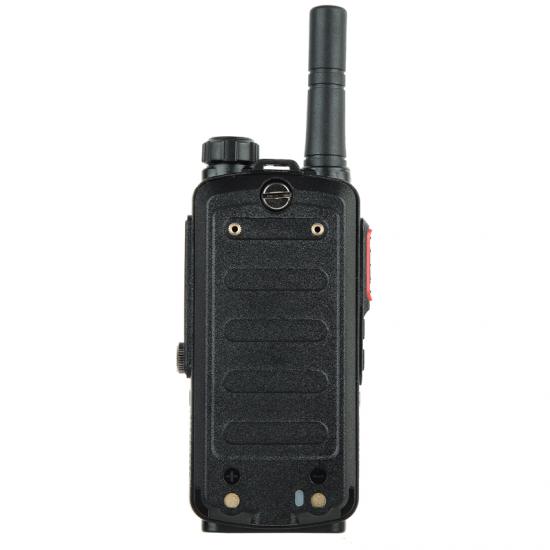

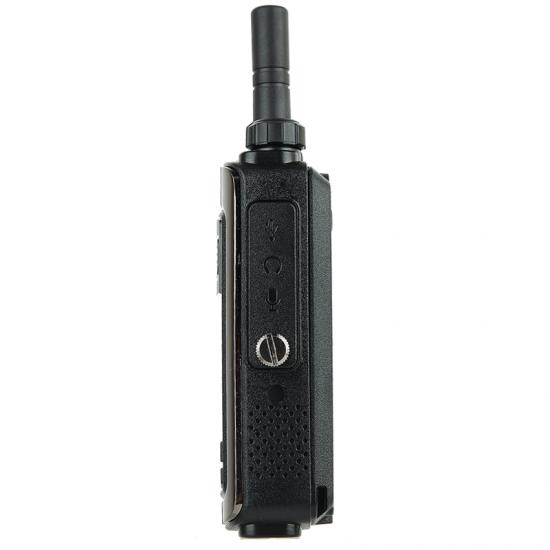

24G Zello GPS sim card Smart Walkie Talkie POC Network radio
Quick Details
Support 4G/ LTE/3G/2G network
Support Group Call, Single Call , Friendly Call, Emergency Call
1.77 inch color screen
Strobe Light Function
Android 8.1
Bluetooth 4.2
Wifi
GPS Function (optional)
IP67 waterproof (optional)
Compatible platform: walkiefleet/Zello/Realptt/Pocstar/POCPTT
Specification
|
General |
Core |
Qualcomm MSM8909 [ Quad Core 1.1Ghz ] |
|
|
Frequency |
2G:GSM:850-900 3G: WCDMA B1/B5 ;CDMA BCO(850MHZ) 4G: FDD-LTE B1/B3/B5/B8 |
||
|
Sim Card |
Single Card Standy |
||
|
System |
Android 8.1 |
||
|
Antenna |
Remove |
||
|
sensitivity of receiving |
-93--106dbm |
||
|
transmitting |
23dBm~25dBm@All up bits |
||
|
output of audio |
2W@10% distortion |
||
|
Weight(Includes battery) |
≈275G |
||
|
Working temperature |
-20℃~+70℃ |
||
|
Storage temperature |
-40℃~+85℃ |
||
|
Operating Voltage |
DC3.3V-4.2V(Recommended value 3.8V) |
||
|
Working current |
Peak current |
≈0.6A |
|
|
Battery Capacity |
3000Mah |
||
|
Charger mode |
Type-c |
||
|
Dimensions (H*W*D) |
115mm*55mm*33mm(without Antenna and Belt clip) |
||
|
Network |
4G |
FDD LTE |
|
|
3G |
WCDMA,CDMA |
||
|
2G |
GSM |
||
|
Bluetooth |
BT4.2(Optional) |
||
|
WIFI |
802.11b/g/n(Optional) |
||
|
Display |
Screen |
1. 77"color screen, resolution:160"128 |
|
|
Storage |
Flash |
4GB+512M |
|
|
|
Data connector |
Type-c |
|
|
Headset connector |
Type-c interforce |
||
|
Charger method |
Desk charger or Data cable |
||
|
Other |
Color |
Grey black |
|
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
