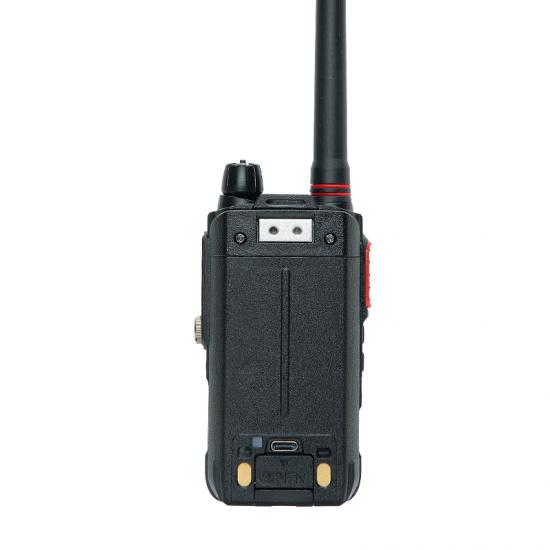

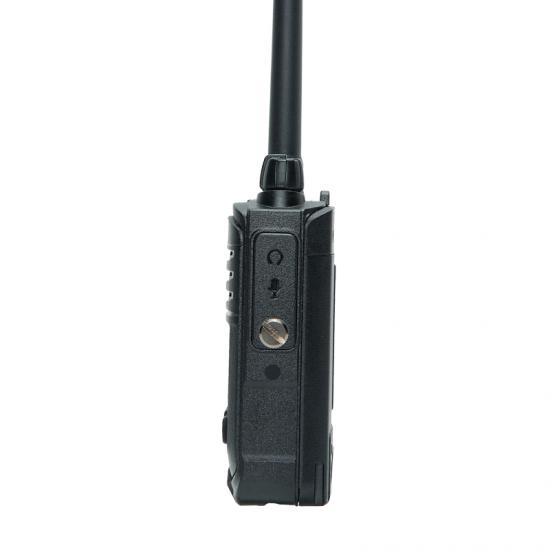

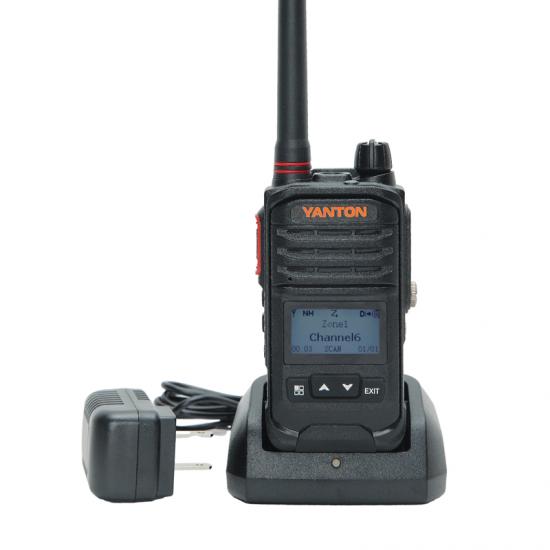

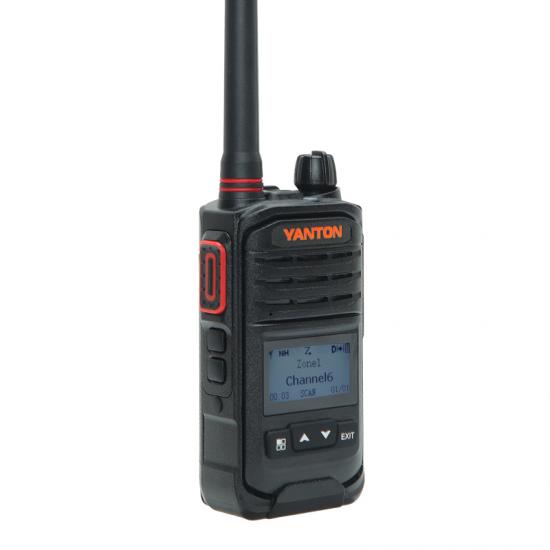

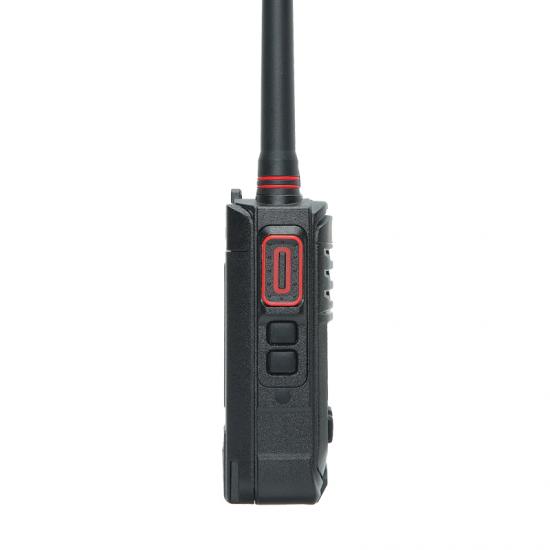

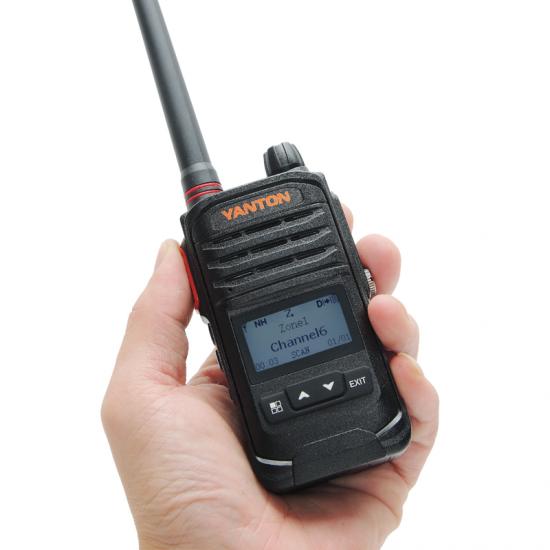

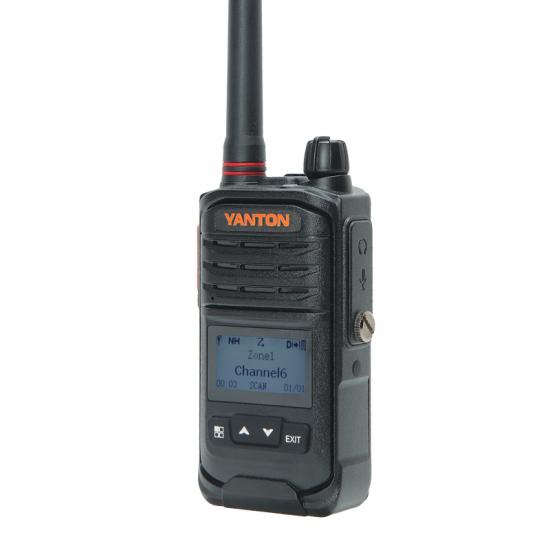

With digital noise-cancelling technology, DM-369 DMR radio which ensures superior call quality in noisy environments.dual-time slot communication capability improves frequency usage, while its digital-analogy compatibility promotes the utility of customers' resources.
Product Origin:
ChinaItem NO.:
DM-369Shipping Port:
QuanzhouColor:
BlackPayment:
T/T,PayPal,Western UnionIP67 DMR Digital Waterproof Portable Two Way Radio Long Range Walkie Talkie
With digital noise-cancelling technology,DMR Digital IP67 Radio, DM-369 DMR radio which ensures superior call quality in noisy environments.dual-time slot communication capability improves frequency usage, while its digital-analogy compatibility promotes the utility of customers' resources.
Quick Details
1.136-174MHZ or 400-480MHZ
2.1024Channels
3.Digital Contacts (All call & Group call & Single call)
4.Alarm Function
5.Scan Function
6.Wide/Narrow bandwidth Selection
7.Hight/ Low Power Switch
8.Noise Cancelling
9.DTMF/Remote Kill,Stun,Activate & Revive
10.CTCSS/DCS
11.Digital Encryption AES256
12.Side key Function
13.Chinese/English Voice prompt
14.Duplex Repeater Function
15.Talk Around
16.MAN DOWN
17.Waterproof IP67 (Optional)
Specification
GENERAL |
|
Frequency Range |
136-174/400-480MHz |
Operating Temperature |
-30°C~ +60°C |
Storage temperature |
-40°C~ +85°C |
channel spacing |
Analog: 12.5/20/25KHz Digital: 12.5KHz |
battery life |
About 15/20 hours according to 5-5-90 duty cycle |
Memory Channel |
1024ch |
Working voltage |
7.2V DC ± 10% |
Antenna Impedance |
50Ω |
Frequency Stability |
±2.5ppm |
Dimensions |
116*61*38mm (without antenna) |
Weight |
265g |
TRANSMIT PART |
|
RF power |
VHF low/Hi:1W/5W; UHF low/Hi:1W/5W; |
4FSK Digital Modulate Mode |
12.5KHz : 7K60FXD(Data Only)/12.5KHz: 7K60FXE(Voice & Data) |
Frequency stability |
±1.5ppm |
Frequency modulation noise |
-40dB@12.5KHZ |
RF radiation |
<-36dBm@1GHz >- 30dBm@1GHz |
FM modulation mode |
12.5KHz:11F0F3E |
Modulation limitation |
2.5KHz@12.5KH |
Audio response |
+1dB-3dB |
Rated audio distortion |
≤3% |
Digital protocol |
ETSITS102361-1,-2,-3 |
Vocoder |
C7000 |
RECEIVE PART |
|
Analog sensitivity |
0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm |
Digital sensitivity |
0.3uV/-117.4dBm(BER 5%) 0.7uV/-110dBm(BER 1%) |
Channel spacing |
12.5kHZ |
Frequency stability |
±1.0ppm |
intermodulation |
TIA603C:65dB ETSI:65dB |
Adjacent channel selectivity |
TIA603C:60dB@12.5KHZ ETSI:65dB@12.5KHZ |
Common channel suppression |
12Db@@12.5KHZ |
Spurious response suppression |
TIA603C:70Db ETSI:70dB MAILTO:60dB@12.5KHZ |
RX RF radiation |
<-57dBm@1GHz >- 47dBm@1GHz |
blocking |
84dB |
Rated audio power |
1W |
Audio response |
+1dB-3dB |
Rated audio distortion |
≤ 3% |
Service
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
