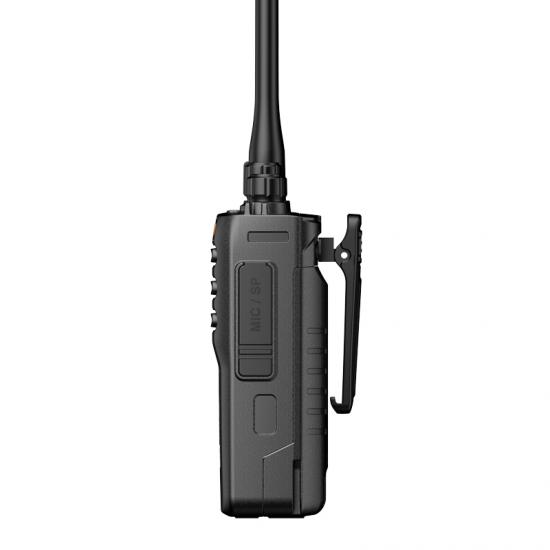

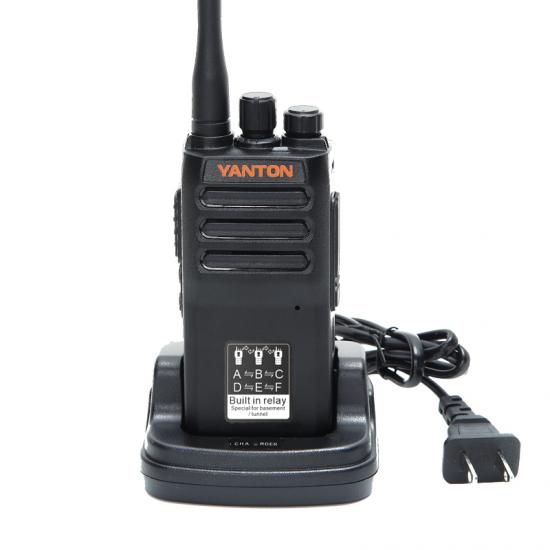

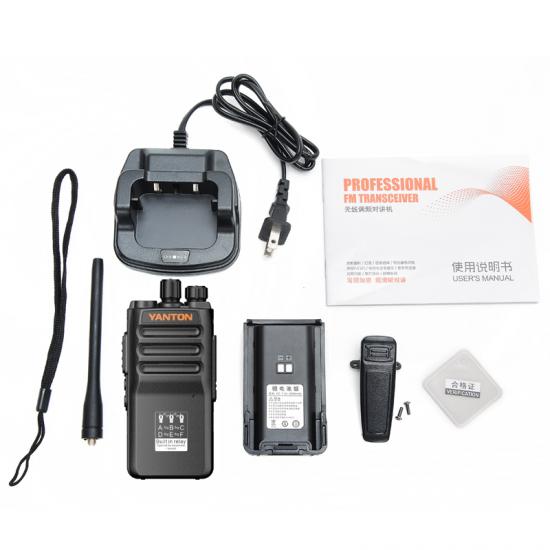

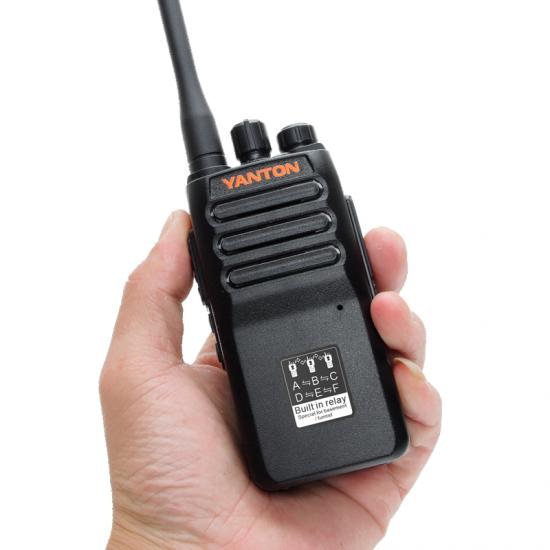

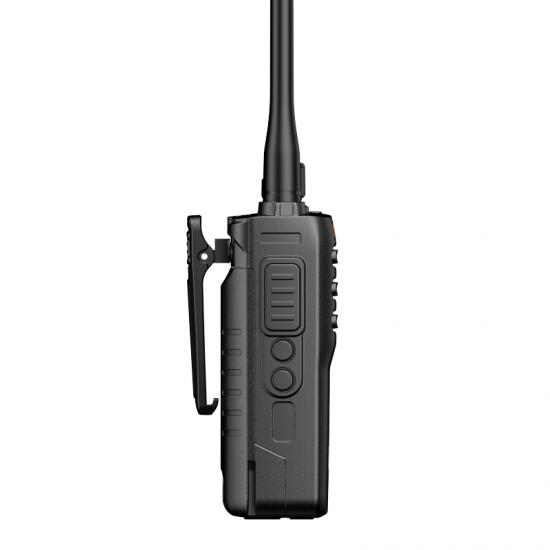

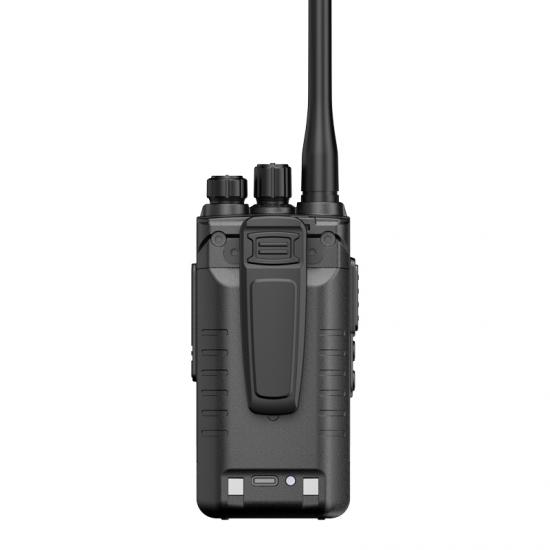

T-288P, Relay Two Way Radio, is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers,construction sites and many more fields of work.
Product Origin:
ChinaItem NO.:
T-288PColor:
BlackPayment:
T/T,PayPal,Western UnionRelay Technology 5W Walkie Talkie Portable Two Way Radio
T-288P, Relay Two Way Radio, is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers,construction sites and many more fields of work.
Quick Details
Relay Technology
Frequency 400-480MHZ
Memory Channels 16
Output power 5W
Busy Channel Lock
Transmitter Time-out Timer(TOT)
Side Key Assignment
Talk Around
Reverse Frequency
Specification
GENERAL |
|
Frequency Range |
400-480MHz (RX/TX) |
Operating Temperature |
-20℃to +55℃ |
Frequency Combination |
please lock frequency synthesize |
Frequency Stability |
±2.5ppm |
Memory Channel |
16 |
Working voltage |
7.4v |
Antenna Impedance |
50Ω |
Operating Mode |
different-frequency simplex or same-frequency simplex |
Dimensions |
123.51*57.89*36.84MM |
Battery Capacity |
2000MAH Li-ion Battery |
TRANSMIT PART |
|
output power |
5w |
Modulate Mode |
F3E |
Max.Freq.Deviation |
≤5KHz |
Remain Wave Radiation |
<-60dB |
Transmitting Current |
≤1000mA |
RECEIVER PART |
|
Sensitivity |
<0.20uV (12dB SINAD) |
Squelch Sensitivity |
<0.20uV |
Intermodulation interference |
50dB |
Audio Power output |
500mW |
Receiving Current |
≤100mA |
Squelch Standby |
20mA |
Relay Two Way Radio
