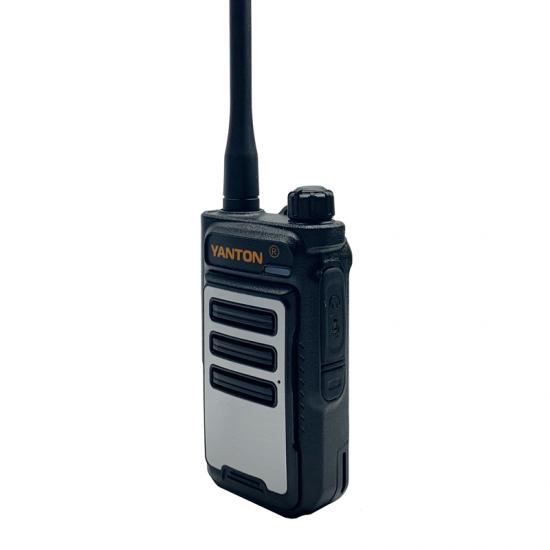

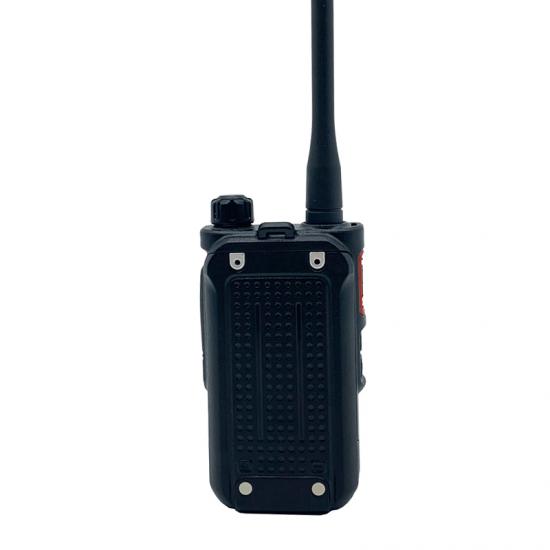

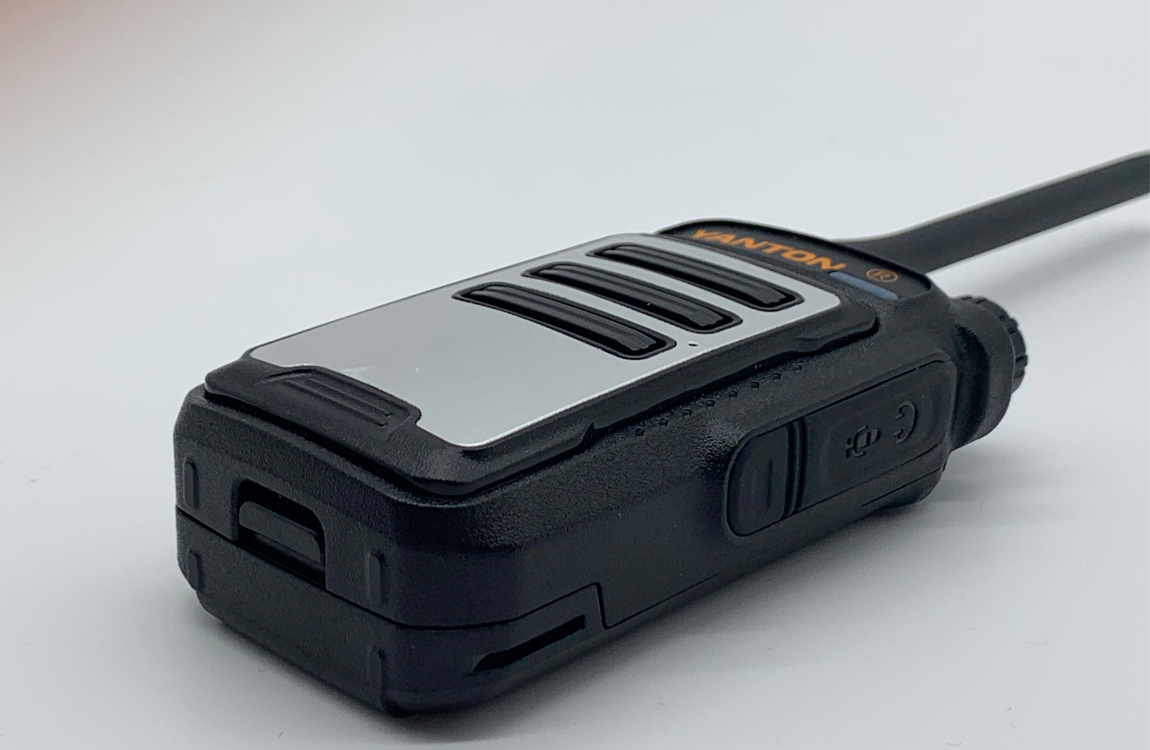

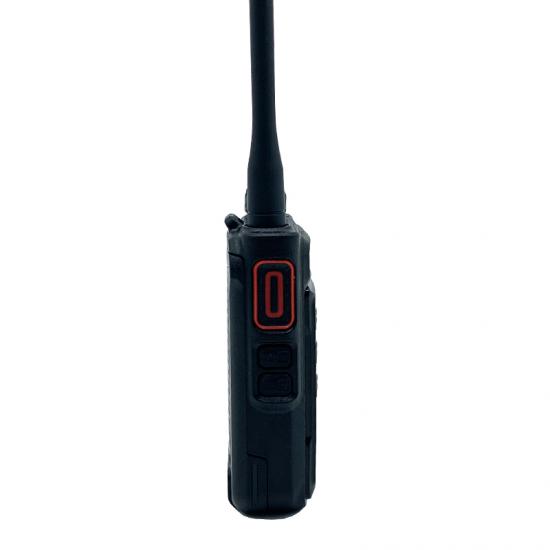

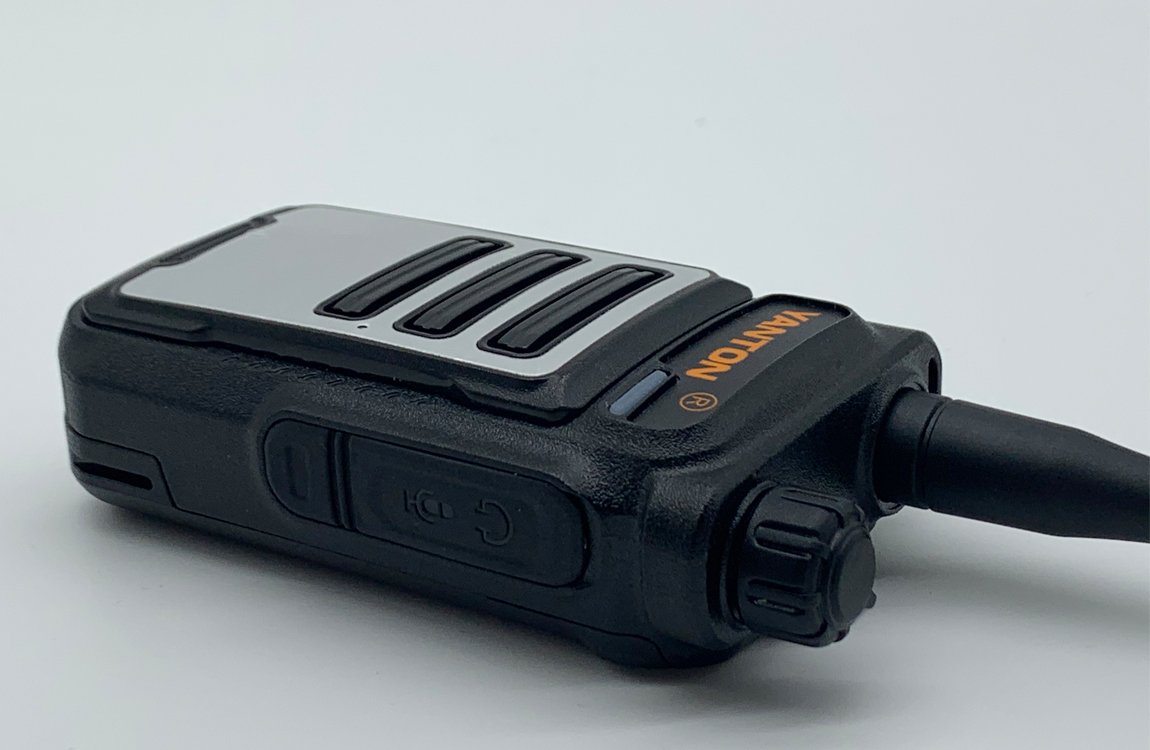

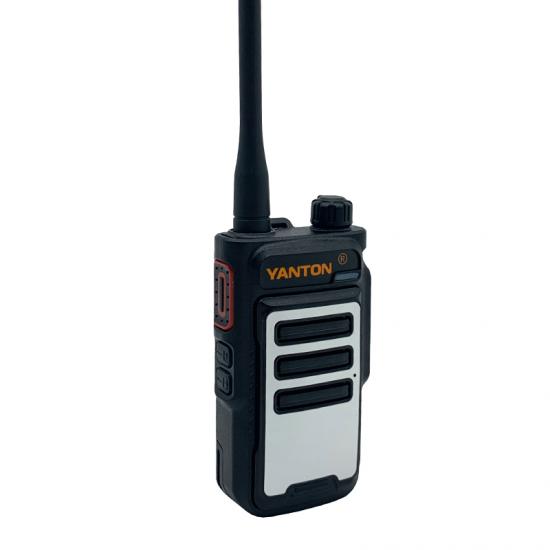

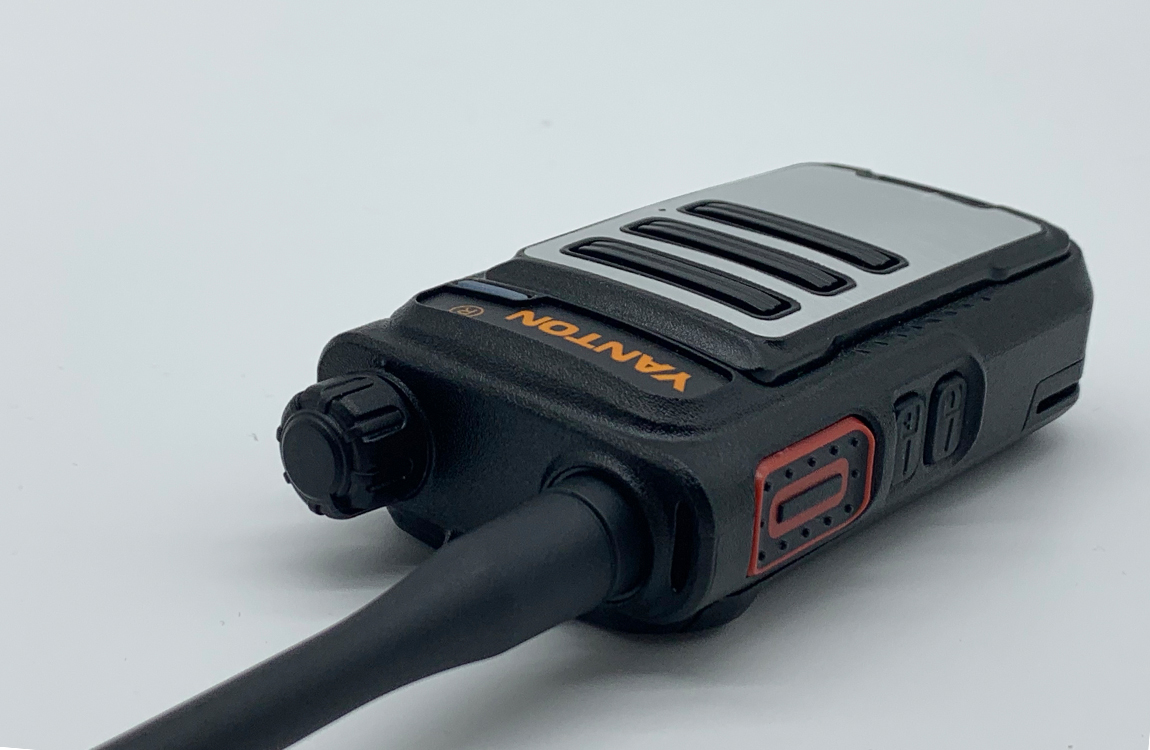

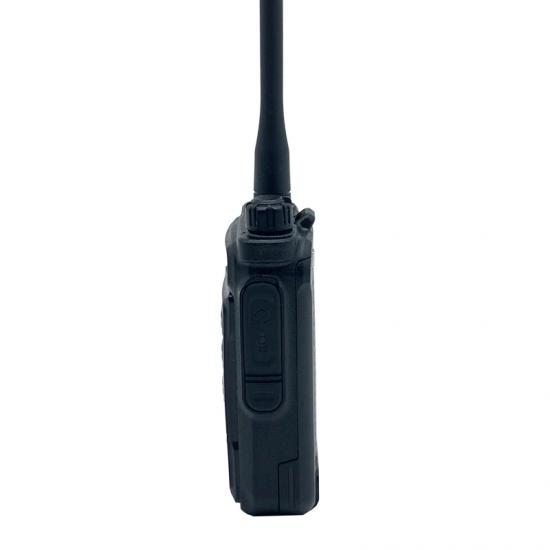

5W UHF Analog Handheld Radio Walkie Talkie

5W UHF Analog Handheld Radio Walkie Talkie

Durable and innovative commerical radio, clear audio quality, dimension 115*55*25mm which makes it ideal for most commercial applications.

  • Product Origin:

    China
  • Item NO.:

    T-228
  • Shipping Port:

    Quanzhou
  • Color:

    Black
  • Payment:

    T/T,PayPal,Western Union
  • MOQ:

    2
Product Detail

5W UHF Analog Handheld Radio Walkie Talkie

Durable and innovative commerical radio, clear audio quality, dimension 115*55*25mm which makes it ideal for most commercial applications.

Quick Details


1.Frequency Range: 136-174MHz/400-480MHz
2.16 Memory Channels
4.VOX Function
5.CTCSS/DCS
6.Chinese and English Voice Prompt
7.Power Saving Function, Low Power Warning
8.High/Low Power Selective  5W/1W
9.Wide/Narrow Bandwidth 12.5KHZ/25KHZ
10.Emergency Alarm
11.Busy Channel Lock
12.Transmitter Time-out Timer(TOT)
13.Side Key Assignment
14.0-9 Grades Squelch Level Setting
15.Scrambler
16. Compander
18.Wire Clone Function


Specification

GENERAL

Frequency Range

 136-174MHz/400-480MHz

Antenna

 High Gain Antenna

Frequency Stability

 ±2.5ppm

Memory Channel

 16 Channels

Working voltage

 7.4v

Antenna Impedance

 50Ω

Operating Mode

 simplex of co-frequency or alien frequency

Dimensions

 115*55*25mm

Battery capacity

 1200MAH Li-ion battery

TRANSMIT PART

RF power

 5w

Modulate Mode

 F3E

Max.Freq.Deviation

 ≤5KHz

Remain Wave Radiation

 <-60dB

Transmitting Current

 ≤1000mA

RECEIVER PART

Sensitivity

 <0.20uV (12dB SINAD)

Squeich Sensitivity

 <0.20uV

Intermodulation Antijamming

 50dB

Audio Power output

 500mW

Receiving Current

 ≤100mA

Squelch Stangby

 20mA


5W Two Way Radios

Radio Walkie TalkieUHF radioUHF 5W

Service



Package: Each package in gift box; 20PCS in strong carton

Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.

Shipping


Express: door to door service DHL,UPS, FEDEX, TNT and so on.

By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
